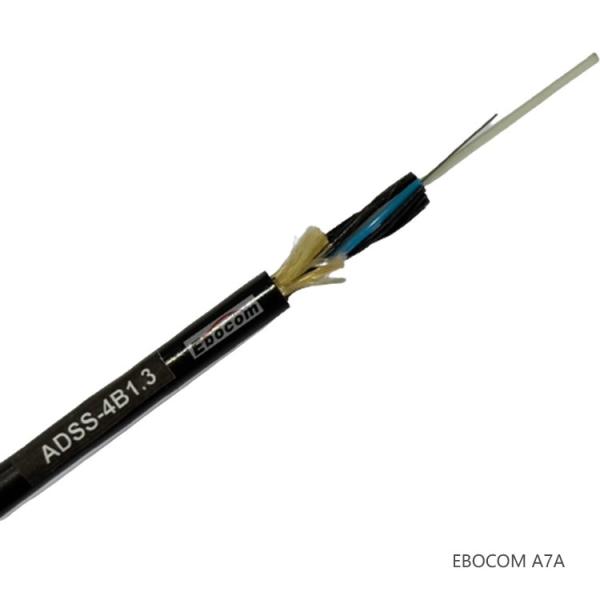

High Quality 12 24 Core Loose Tube Stranded ADSS Fiber Optic Cable

Name: High Quality 12 24 Core Loose Tube Stranded ADSS Fiber Optic Cable
Brand: EBOCOM
Price: 1 USD

Wholesale High Quality 12 24 Core Loose Tube Stranded ADSS Fiber Optic Cable from china suppliers

Brand Name : EBOCOM

Model Number : ADSS -80B1.3

Certification : ISO TLC

Place of Origin : Shandong，China

MOQ : 2000M

Price : EXW ≥2000m $0.72/M ≥5000m $0.70/M

Payment Terms : T/T

Supply Ability : 50000KMS/day

Packaging Details : 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.

Model NO. : ADSS

Tension : 1000n-9000n

Core : Multicore

Temperature : -30ºC~ +65ºC

Brand : Ebocom

Transport Package : Wooden Drum

Sheath Material : PE

Specification : 1.1mx1.1mx0.8m

Span : 100m-300m

Origin : China

Jacket : Single or Double

HS Code : 8544700000

Contact Now

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.ADSS is an alternative to OPGW and OPAC with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 meters to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.

– Characteristics of product:

Small diameter, light weight, the span cam reach to 1500m, with a low additional load to the tower.
Strong anti-pull performance, more than 90KN.
Non-metallic structure, good insulated performance, thunder-proof.
The equality sparn and good performance when meeting an emergency.
Good performance of anti-gun and anti-erode
Suitable for bad climate.
Can work without electric stop.
Structure characteristic Loose tube and non-metallic strengthen High flexible , can work under the environment at electric fieldsd≤25KV/m.

-Product Applications:

ADSS cable is suspended in the electrical field due to the phase conductors
ADSS is good for the worst-case combinations of temperature, ice load, and wind environments
As a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.
Utilized for telecommunications by power utilities, telcos, and private network groups
Designed for installation on distribution and transmission lines
Capable of being installed in close proximity to conductors if security is a concern
Suitable for underbuild applications, minimizing the need for outages
Used for telecommutenetworks where quick, low-cost installation is a priority

Structure parameters:
Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter(mm)	Thickness of inner jacket(mm)	Thickness of outer jacket(mm)	Cable diameter(mm)	Cable weight (kg/km)
4	1+6	4	2.2±0.1	2.6/2.6	1.0±0.1	1.7±0.1	12.8±0.5	133
6	1+6	6	2.2±0.1	2.6/2.6	1.0±0.1	1.7±0.1	12.8±0.5	133
8	1+6	4	2.2±0.1	2.6/2.6	1.0±0.1	1.7±0.1	12.8±0.5	133
12	1+6	6	2.2±0.1	2.6/2.6	1.0±0.1	1.7±0.1	12.8±0.5	133
24	1+6	6	2.2±0.1	2.6/2.6	1.0±0.1	1.7±0.1	12.8±0.5	134
36	1+6	6	2.2±0.1	2.6/2.6	1.0±0.1	1.7±0.1	12.8±0.5	135
48	1+6	12	2.5±0.1	2.6/2.6	1.0±0.1	1.7±0.1	13.3±0.5	146
72	1+6	12	2.5±0.1	2.6/2.6	1.0±0.1	1.7±0.1	13.3±0.5	147
96	1+8	12	2.5±0.1	3.4/4.3	1.0±0.1	1.7±0.1	15.0±0.5	190
